Grinding and Abrasive Wheels

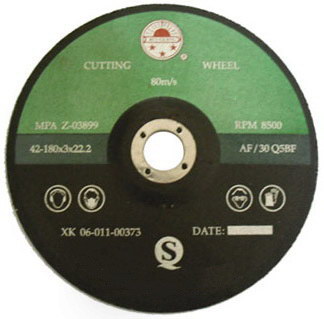

Cutting Wheel

Metric System	Inch System	Specification	M/S	RPM	PCS/CTN
76 x 2 x 9.53	3 x 1/8 x 3/8	A30RBF	80	25000	200
100 x 3 x 16	4 x 1/8 x 5/8	A30RBF	80	15300	200
115 x 3 x 22	4.5 x 1/8 x 7/8	A30RBF	80	13300	200
125 x 3 x 22	5 x 1/8 x 7/8	A30RBF	80	12200	200
180 x 3 x 22	7 x 1/8 x 7/8	A30RBF	80	8500	100
230 x 3 x 22	9 x 1/8 x 7/8	A30RBF	80	6600	50
300 x 3 x 25.4	12 x 1/8 x 1	A30RBF	80	5100	25
355 x 3 x 25.4	14 x 1/8 x 1	A30RBF	80	4400	25
405 x 3 x 25.4	16 x 1/8 x 1	A30RBF	80	3800	25
76 x 1.6 x 9.53	3 x 1/16 x 3/8	WA60TBF	80	25000	400
100 x 1.6 x 16	4 x 1/16 x 5/8	WA60TBF	80	15300	200
115 x 1.6 x 22	4.5 x 1/16 x 7/8	WA60TBF	80	13300	200
125 x 1.6 x 22	5 x 1/16 x 7/8	WA60TBF	80	12200	200
180 x 1.6 x 22	7 x 1/16 x 7/8	WA60TBF	80	8500	100
230 x 1.6 x 22	9 x 1/16 x 7/8	WA60TBF	80	6600	50
76 x 1 x 9.53	3 x 1/32 x 3/8	WA60TBF	80	25000	400
100 x 1 x 16	4 x 1/32 x 5/8	WA60TBF	80	15300	400
115 x 1 x 22	4.5 x 1/32 x 7/8	WA60TBF	80	13300	200
125 x 1 x 22	5 x 1/32 x 7/8	WA60TBF	80	12200	200
100 x 2.5 x 16	4 x 3/32 x 5/8	C30RBF	80	15300	200
115 x 2.5 x 22	4.5 x 3/32 x 7/8	C30RBF	80	13300	200
125 x 2.5 x 22	5 x 3/32 x 7/8	C30RBF	80	12200	200
150 x 2.5 x 22	6 x 3/32 x 7/8	C30RBF	80	10200	100
180 x 2.5 x 22	7 x 3/32 x 7/8	C30RBF	80	8500	100
230 x 2.5 x 22	9 x 3/32 x 7/8	C30RBF	80	6600	50
100 x 3 x 22	4 x 1/8 x 7/8	C30RBF	80	15300	200
115 x 3 x 22	4.5 x 1/8 x 7/8	C30RBF	80	13300	200
125 x 3 x 22	5 x 1/8 x 7/8	C30RBF	80	12200	200
150 x 3 x 22	6 x 1/8 x 7/8	C30RBF	80	10200	100
180 x 3 x 22	7 x 1/8 x 7/8	C30RBF	80	8500	100
230 x 3 x 22	9 x 1/8 x 7/8	C30RBF	80	6600	50
300 x 3 x 25.4	12 x 1/8 x 1	C30RBF	80	5100	25
355 x 3 x 25.4	14 x 1/8 x 1	C30RBF	80	4400	25
405 x 3 x 25.4	16 x 1/8 x 1	C30RBF	80	3800	25

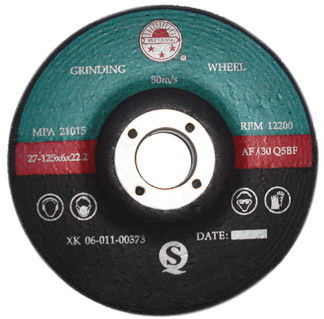

Grinding Wheel

Professional grinding common metal, building metal, casting iron and welding

Metric System	Inch System	Type	Specification	M/S	RPM	PCS/CTN
		T27
100 x 4 x 16	4 x 1/6 x 5/8	270406A	A24SBF	80	15300	200
100 x 6 x 16	4 x 1/4 x 5/8	270404A	A24SBF	80	15300	200
115 x 4 x 22	4.5 x 1/6 x 7/8	270456A	A24SBF	80	13300	100
115 x 6 x 22	4.5 x 1/4 x 7/8	270454A	A24SBF	80	13300	100
125 x 6 x 22	5 x 1/4 x 7/8	270504A	A24SBF	80	12200	100
150 x 6 x 22	6 x 1/4 x 7/8	270604A	A24SBF	80	10200	50
180 x 4 x 22	7 x 1/6 x 7/8	270706A	A24SBF	80	8500	50
180 x 6 x 22	7 x 1/4 x 7/8	270704A	A24SBF	80	8500	50
180 x 8 x 22	7 x 1/3 x 7/8	270703A	A24SBF	80	8500	50
200 x 6 x 22	8 x 1/4 x 7/8	270804A	A24SBF	80	7400	50
230 x 4 x 22	9 x 1/6 x 7/8	270906A	A24SBF	80	6600	25
230 x 6 x 22	9 x 1/4 x 7/8	270904A	A24SBF	80	6600	25
230 x 8 x 22	9 x 1/3 x 7/8	270903A	A24SBF	80	6600	25

Mesh Cap

Aluminum Core

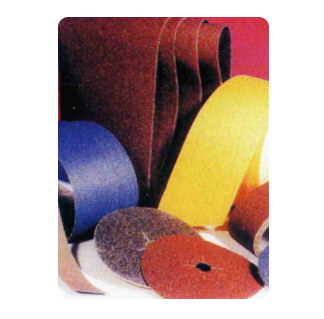

Fiberglass discs for grinding wheels

Various kinds of specifications of sand belt, sand cloth roll nonstandard abnormal polishing abrasives, etc.

Application: Automobile furniture, leather products stainless steel metal work, surface processing precision grinding & polishing.
